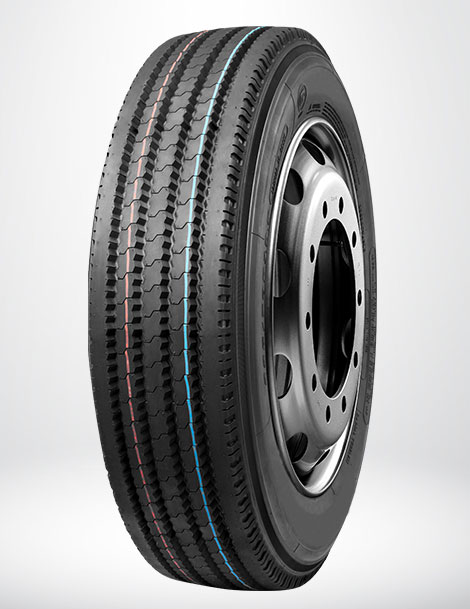

CAR 820

Regional

All Position

APPLICATIONS:

  • Box Trucks

TIRE FEATURES:

  • 5-rib tread pattern and wide shoulders for even load distribution.
  • Solid shoulder fights irregular wear in high scrub applications.
  • Special groove shape design for improved rib tear resistance.
  • Wide grooves designed for hydroplaning resistance.
  • Cross-rib siping fights wear and improves wet traction

Interested in this product? Let us help get you in touch with a sales representative who can guide you through the purchasing process and provide you with excellent customer service!

Size Load Index Speed Symbols PR Load Range Standard Rim Max Load Single | Dual (lbs) Max Air Single | Dual (psi) Overall Diameter (in) Section Width (in) Revolutions per mile Tread Depth (32nds) SmartWay
255/70R22.5 140/137M 16 H 7.5 5510 | 5070 120 | 120 36.61 10.04 567 18 N
225/70R19.5 128/126M 14 G 6.75 3970 | 3750 110 | 110 31.93 8.9 651 16 N
245/70R19.5 135/133M 16 H 7.5 4805 | 4540 120 | 120 33.03 9.76 629 16 N
265/70R19.5 140/138M 16 H 7.5 5510 | 5205 112 | 112 34.13 10.31 609 18 N
  • Load Index Speed Symbols - 140/137M
  • PR - 16
  • Load Range - H
  • Standard Rim - 7.5
  • Max Load Single (lbs) - 5510
  • Max Air Single (psi) - 120
  • Max Load Dual (lbs) - 5070
  • Max Air Dual (psi) - 120
  • Overall Diameter (in) - 36.61
  • Section Width (in) - 10.04
  • Revolutions Per Mile - 567
  • Tread Depth (32nds) - 18
  • SmartWay - N
  • Load Index Speed Symbols - 128/126M
  • PR - 14
  • Load Range - G
  • Standard Rim - 6.75
  • Max Load Single (lbs) - 3970
  • Max Air Single (psi) - 110
  • Max Load Dual (lbs) - 3750
  • Max Air Dual (psi) - 110
  • Overall Diameter (in) - 31.93
  • Section Width (in) - 8.9
  • Revolutions Per Mile - 651
  • Tread Depth (32nds) - 16
  • SmartWay - N
  • Load Index Speed Symbols - 135/133M
  • PR - 16
  • Load Range - H
  • Standard Rim - 7.5
  • Max Load Single (lbs) - 4805
  • Max Air Single (psi) - 120
  • Max Load Dual (lbs) - 4540
  • Max Air Dual (psi) - 120
  • Overall Diameter (in) - 33.03
  • Section Width (in) - 9.76
  • Revolutions Per Mile - 629
  • Tread Depth (32nds) - 16
  • SmartWay - N
  • Load Index Speed Symbols - 140/138M
  • PR - 16
  • Load Range - H
  • Standard Rim - 7.5
  • Max Load Single (lbs) - 5510
  • Max Air Single (psi) - 112
  • Max Load Dual (lbs) - 5205
  • Max Air Dual (psi) - 112
  • Overall Diameter (in) - 34.13
  • Section Width (in) - 10.31
  • Revolutions Per Mile - 609
  • Tread Depth (32nds) - 18
  • SmartWay - N
